Rubin 10
- From 3 m to 10 m working width
- Tractors between 87 - 600 hp | 64 - 441 KW
- Working depth up to 14 cm
Shallow, fast and intensive
The Rubin compact disc harrow guarantees intensive, uniform mixing of organic matter and soil to a depth of approximately 14 cm, Its high weight guarantees penetration, even under hard conditions, and therefore reduces moisture loss from evaporation. This makes the Rubin highly suitable for shallow, reliable stubble cultivation at high working speeds. For catch crop sowing, the Rubin can be combined with the SeedHub catch crop seed drill.
Contact your distribution partner!Rubin 10
- Symmetrical arrangement of every row of serrated concave discs
- Middle discs are offset
- DuraMaxx discs
- An impact harrow and a levelling harrow
- Semi-mounted versions
- Support wheels
- Recoil cushioning
Overview - Rubin 10
The advantages of the Rubin 10 range
Convince yourself of the advantages of Rubin 10 and prepare your soil optimally. Because tillage for active plant protection reduces the use of plant protection products in the next crop.
Precise work saves fuel
The symmetrical arrangement of every row of serrated concave discs provides precise directional stability with no side draft, even when driving on slopes, and maximises fuel savings.
Patented disc placement
The middle discs are offset to prevent blockages and provide for even tillage over the full working width.
Less wear
The new through-hardened DuraMaxx discs with a 645-mm diameter deliver maximum service life and operating times with reduced maintenance costs

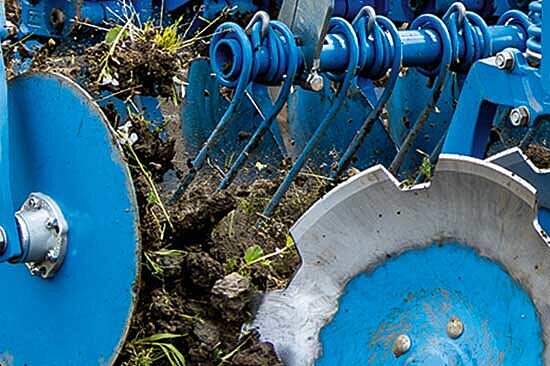

Comfortably adjustable harrow
An impact or levelling harrow with comfort adjustment, which can be individually and finely adjusted, is provided behind the two rows of discs for precise deposition of the flow of soil.
Safety first!
The transport wheel design for mounted implements allows the use of heavy rollers and ensures safe operation on the road.
Quality work in all conditions
Support wheels for folding semi-mounted implements guarantee consistent working depths even in variable soils and precise pass alignment on slopes.
Recoil cushioning for difficult conditions
When hitting obstacles, the concave discs deflect independently upwards and rapidly return to their working position.
The energy from the spring is transferred to the ground and does not place any strain on the frame.
Strong performance in the field
With 10-m working width and 14-cm line spacing, this powerful compact disc harrow sets new benchmarks. From a working depth of 7 cm, the Rubin 10 /1000 KUA works across the full working width and delivers a strong performance in the field. The Rubin 10/1000 has an EU-wide road approval for speeds of up to 40 km/h.
Strong attachment
The Rubin 10 /1000 KUA is available in three hitch variants. This compact disc harrow can be hitched to the tractor:
- by means of a drawbar eye
- a drawbar eye with ball joint
- a drawbar ball coupling
These hitches ensure not only that the combination has optimum driving dynamics, but also that you have everything safely under control at all times, even at the permitted driving speed of 40 km/h.
Gentle to soil & the machine
The Rubin 10 /1000 KUA lifts out the rows of discs via the depth adjustment cylinders and turns on the roller. This results in extremely reduced ground pressure at the headland.
What’s special is that a new technology even allows the machine to reverse on the roller.
Compact road transport
Thanks to the new folding mechanism, time-consuming getting in and out of the cab is now a thing of the past. This ensures that the machine can be moved quickly. With automatic folding, the Rubin 10 /1000 KUA stands out in terms of working comfort. Despite its 10-m working width, the dimensions of this compact disc harrow are smaller than 3×4 m when it is folded to ensure safe transport on roads, narrow fields and tracks.
All set for sloping terrain
The intelligent iQ Blue disc harrow WC contour adjustment adds smart features to your Rubin 10 /1000 KUA and sets you up for optimum tillage in sloping terrain. This control system continuously monitors the position of the cylinders while the machine operates and automatically adjusts the cylinder position to the field’s transverse contour. This produces very even results with optimum tillage of your fields.
Select a model
- U = Mechanical Non-Stop overload safety device
- KU = Foldable, mechanical Non-Stop overload safety device
- KUA = Foldable, semi-mounted, mechanical Non-Stop overload safety device,
Technical data
Rubin 10/300 U | Rubin 10/350 U | Rubin 10/400 U | |
---|---|---|---|
Working width (cm) | 300 | 350 | 400 |
Power requirements (hp) from - to | 105 - 150 | 122 - 175 | 140 - 200 |
Power requirements (kW) from - to | 77 - 110 | 90 - 129 | 103 - 147 |
Weight (kg) | 1 675 | 1 810 | 1 950 |
Article number | 722 3006 | 722 3007 | 722 3008 |
Number of discs | 24 | 28 | 32 |
Disc diameter (mm) | 645 | 645 | 645 |
Basic equipment
- Lower link attachment Cat. 3N=L2 Z3
( or Cat. 3 or 4N=L3 Z4 ) - Underframe clearance 80 cm
- Levelling harrow with comfort adjustment behind the
second disc row - Mechanically swivable outer concave discs
- Concave discs DuraMaxx Disc 645 x 6 mm, notched with automatic overload safety device
- Without roller
The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
